The modular converter – space-saving, safe and robust

SINAMICS G120-rugged standard drives for general applications in the industrial enviroment, which can even be used under extreme environmental conditions as a result of its smart coolong concept. It comprises a combination of Power Modules and Control Units that can be freely selected.

Overview
The SINAMICS G120 frequency inverter is designed to provide precise and cost-effective speed/torque control of three-phase motors.
With different device versions (frame sizes FSA to FSGX) in a power range from 0.37 kW to 250 kW (0.5 hp to 400 hp), it is suitable for a wide variety of drive solutions.

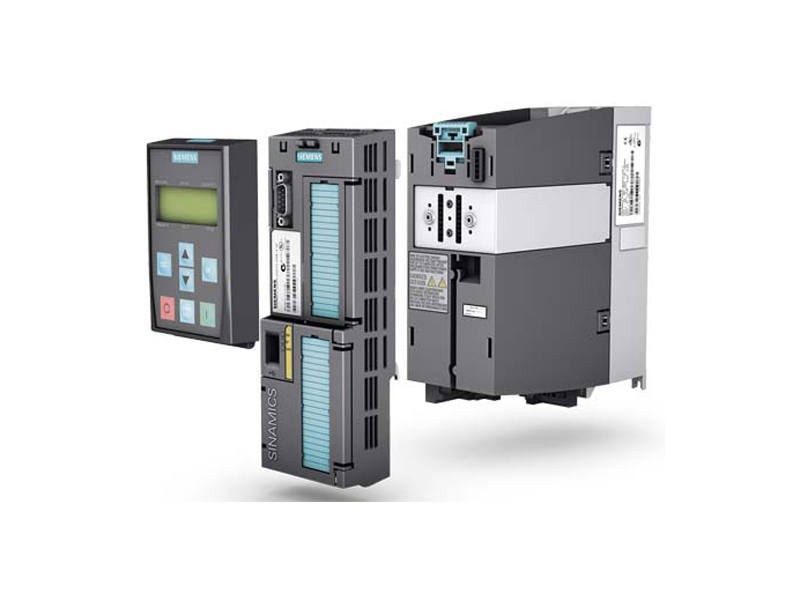

Example: SINAMICS G120, frame sizes FSA, FSB and FSC; each with Power Module, CU240E2 F Control Unit and Basic Operator Panel BOP-2

Example

SINAMICS G120, frame size FSGX; with Power Module, pm2402 F Control Unit and Basic Operator Panel BOP-2

*) PM2402 Power Modules, frame size FSF, available soon. PM240 Power Modules, frame size FSF, continue to be available and are described in Catalog D 31 • 2015. Operator-friendly design
SINAMICS G120 is a modular inverter system that essentially comprises two function units:

Control Unit (CU)

SINAMICS G120 – modular, safe and rugged Modular SINAMICS G120 inverters are designed for the precise and cost-effective speed/torque control of three-phase motors. With their different device versions, they are suitable to address a whole range of drive solutions. The highest degree of service friendliness and flexibility is ensured as the various components can be simply replaced. It is also far simpler to integrate these drives into safety-relevant machines or systems, thank to their integrated safety functionality.
