The cost-effective, reliable and easy-to-use drive for basic applications

The perfect drive solution for basic applications

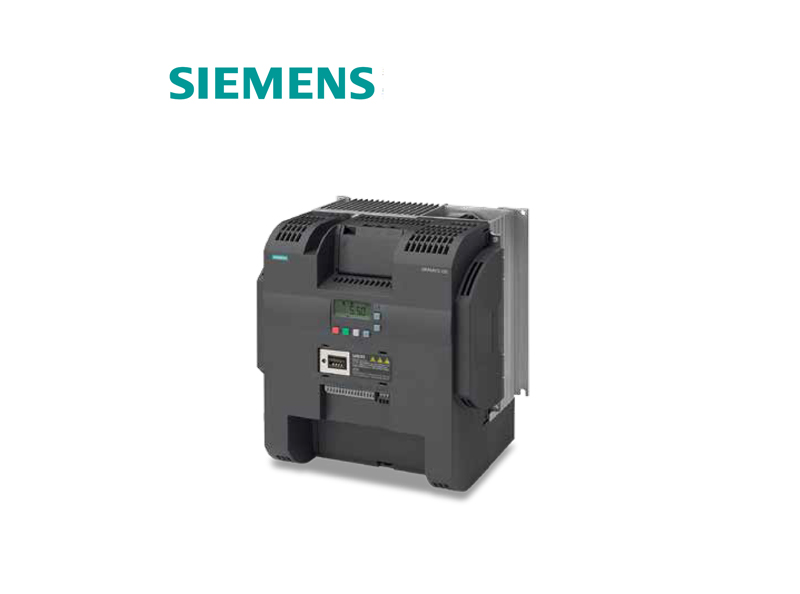

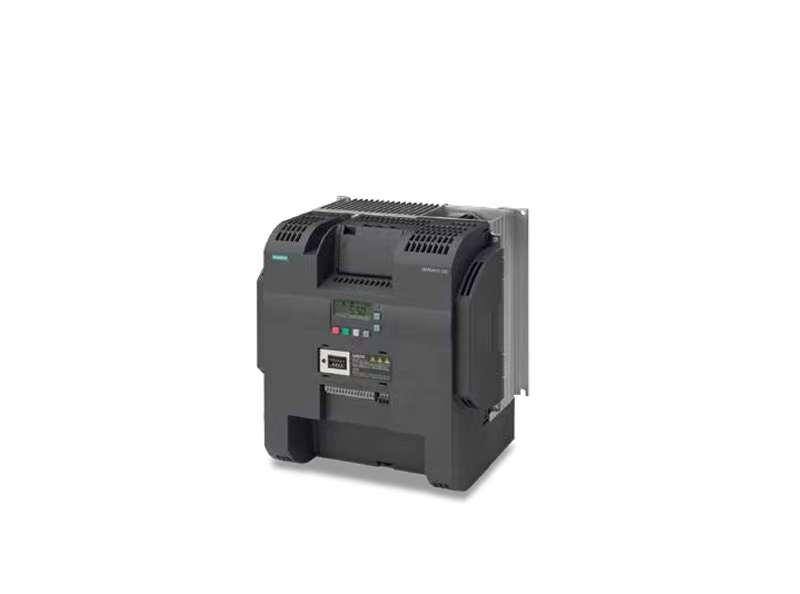

SINAMICS V20, the versatile inverter for basic applications. The compact SINAMICS V20 basic performance inverter is a cost-effective drive solution. Which sets itself apart as a result of its simple installation and handing. With the V20, you can depend on fast commissioning and extremely simple operation – this also applies to the robustness and cost efficiency.

power range:0.12 kW to 30 kW (1/6 hp up to 40 hp)

Voltage range:1AC 200V ... 240V (–10% / +10%) 3AC 380V ... 480V (–15% / +10%)

Control modes:V/f V²/f FCC V/f multi-point

Power and control

Voltage 1AC 230V: 1AC 200V ... 240V (–10% ... +10%) 1)

3AC 480V: 3AC 380V ... 480V (–15% ... +10%)

Maximum output voltage:100% of input voltage

Supply frequency :50 / 60 Hz

Line supply type :TN, TT, TT earthed line, IT 2)

Power range

1AC 230V 0.12 … 3.0 kW (1/6 … 4 hp)

3AC 480V 0.37 … 30 kW (1/2 … 40 hp)

cos φ / Power factor: ≥ 0.95 / 0.72

Overload capability up to 15 kW:

High Overload (HO): 150% IH for 60 s within a cycle time of 300 s

from 18.5 kW:

Low Overload (LO): 110% IL for 60 s within a cycle time of 300 s

High Overload (HO): 150% IH for 60 s within a cycle time of 300 s

Output frequency 0 ... 550 Hz resolution: 0.01 Hz

Efficiency factor 98%

Control modes Voltage /frequency control mode: linear V/f, square law V/f, multi-point V/f

Flux current control mode: FCC

Easy-to-instal

1.Push-through and wall mounting—side-by-side is possible

2.USS and Modbus RTU at terminals Integrated braking chopper for

3.7.5 kW to 30 kW (10 hp up to 40 hp) Electromagnetic compatibility (EMC) category C1 / C2

Easy-to-use

1.Parameter loading without power supply

2.Easy commissioning with mobile device or laptop with web server module SINAMICS V20 Smart Accessn

3. Integrated application and connection macros

4 Keep Running mode for uninterrupted operation

5. Wide voltage range, advanced cooling design and coated PCBs increase robustness

Easy to save money

1.ECO mode for V/f, V²/f/Hibernation mode

2. Monitoring energy and water flows

3.High overload and low overload mode for FSE
